Description

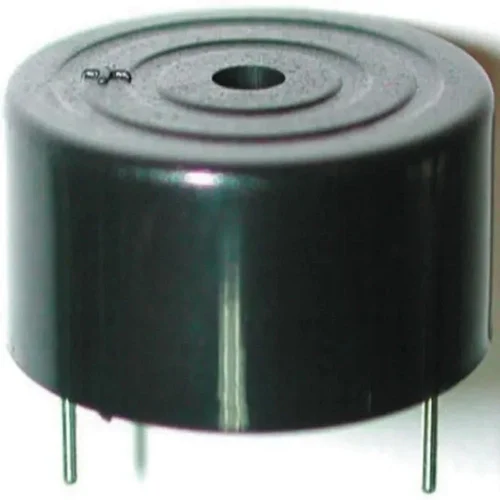

The KPEG232 & KPEG232H Piezo Buzzers are high-quality, compact audio indicators designed for industrial, automotive, and consumer electronics. Operating at 12V DC, they deliver a clear 75dB sound pressure level at 30cm. Featuring a continuous tone output and a durable ABS UL-94 High Heat (Black) body, these buzzers are reliable even in high-temperature environments. The pin-type installation ensures easy and secure mounting in a variety of electronic circuits and control panels.

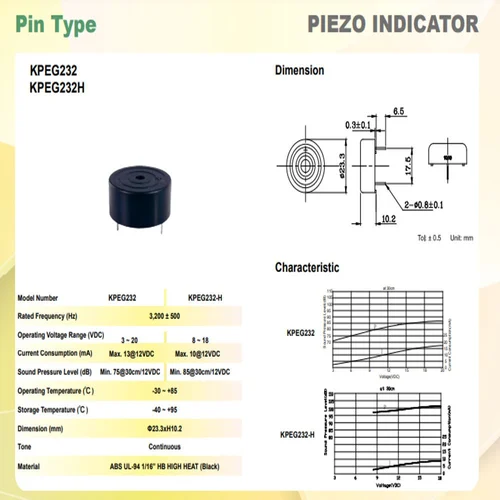

Key Features
- Operates at 12V DC with low power consumption
- Produces a minimum 75dB sound output at 30cm
- Continuous tone output for effective signaling
- Frequency: 3.2KHz ± 500Hz
- Maximum current consumption: 13mA @ 12VDC
- Built with ABS UL-94 High Heat (Black) material for durability
- Operating temperature range: -30°C to +85°C; storage: -40°C to +95°C
- Compact dimensions: 23.30 × 10.20 mm
- Pin-type installation for easy integration
- Made in India, ensuring quality and reliability
Applications
- Industrial control systems and alarms
- Automotive audio indicators and sirens
- Consumer electronics signaling
- Security and alert systems
- Any application requiring a compact, high-SPL piezo buzzer
