Description

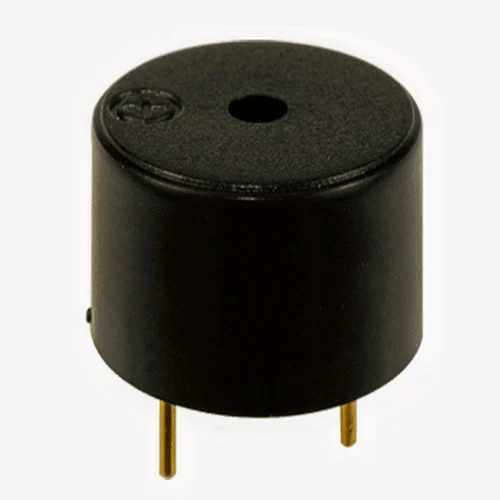

The KPEG242 Piezo Buzzer Module is a compact and high-performance audio indicator suitable for industrial, automotive, and electronic applications. Operating at 24V DC, it produces a loud 92dB sound pressure level at 10cm, ensuring effective and noticeable alerts. With a continuous tone output and a durable PBT (Black) body, it performs reliably across a wide temperature range. The pin-type installation allows easy and secure mounting in various circuits and control panels.
Key Features
- Operates at 24V DC with efficient power usage
- Produces a minimum 92dB sound output at 10cm
- Continuous tone output for clear and reliable alerts
- Frequency range: 3.8KHz to 4.8KHz
- Maximum current consumption: 18mA @ 24VDC
- Compact pin-type installation for easy mounting
- Durable PBT (Black) material ensures heat resistance and longevity
- Operating temperature range: -40°C to +85°C; storage: -40°C to +90°C
- Wide voltage tolerance: 3VDC to 34VDC
- Made in India for quality and reliability
Applications
- Industrial machinery and control panels
- Automotive alert and warning systems
- Security alarms and signaling devices
- Consumer electronics requiring compact audio indicators
- Embedded systems with high SPL sound requirements
